- and for all weather races. Remove the cooling fan before using the ESC in water.
- Please clean and dry as soon as possible after use to avoid the connector rusting.
- One‑click settings (SET button on ESC) can easily reset all parameters to factory default settings.
- Portable digital LED program card compatible with optional equipment, especially suitable for outdoor use.
- The proportional brake has 4 stages of maximum braking power adjustment and 8 stages of drag braking power adjustment.
Specification:
Condition: Brand New

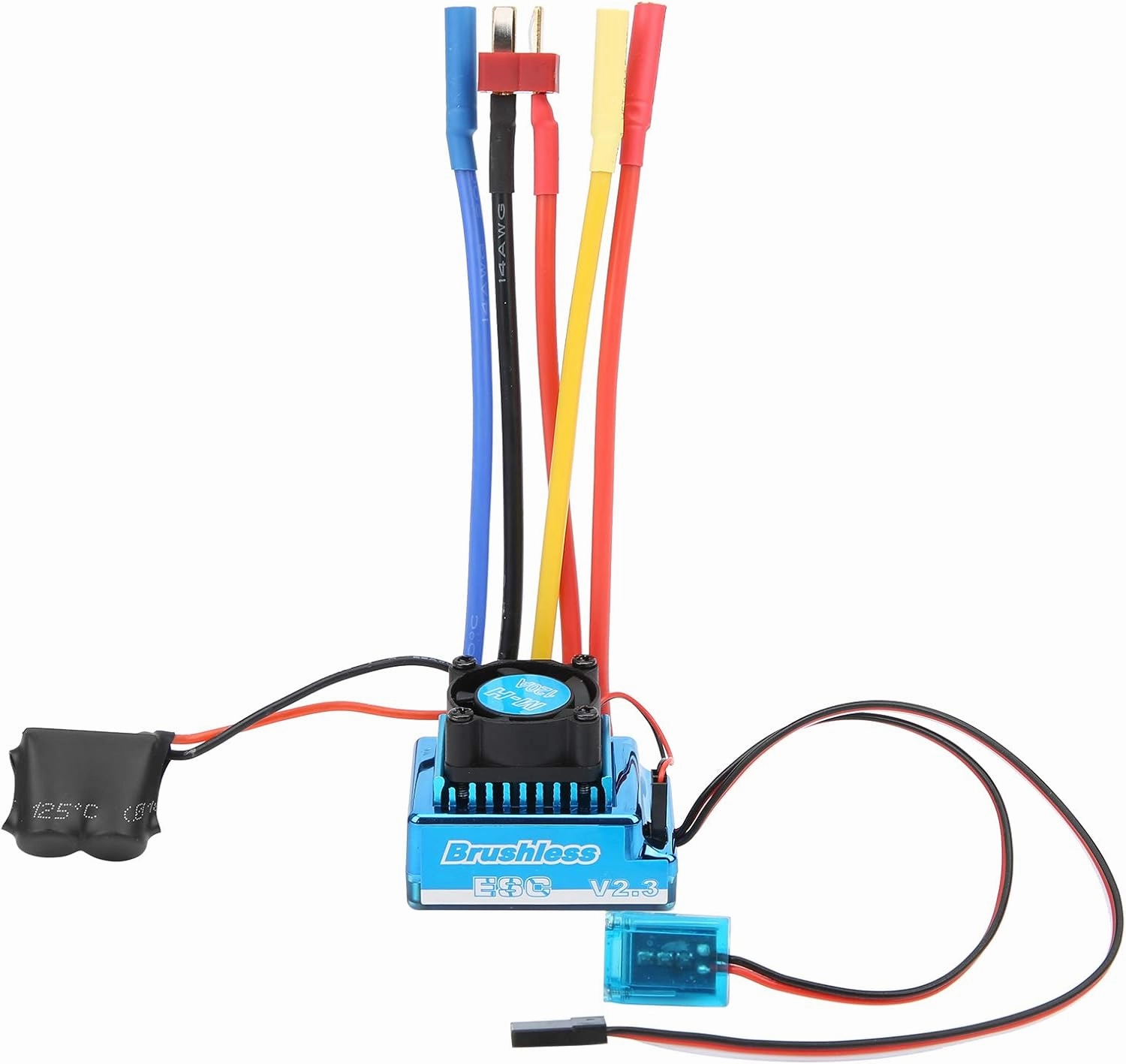

Item Type: ESC
Material: Electronic components
45A ESC:
Continuous Current: 45A
Burst Current: 180A
Adapter Battery: 2-3S lithium battery / 4-9s -hydrogen - battery (note not with batteries)
BEC Output: 5.8V / 3A
Power Plug: T plug male
Motor Plug: 4mm banana plug female
60A ESC:
Continuous Current: 60A
Burst Current: 320A
Battery: 2-3S lithium battery / 4-9s -hydrogen - battery
BEC Output: 5.8V / 3A
Power Plug: T plug
Motor Plug: 4mm banana plug female
80A ESC:
Continuous Current: 80A
Burst Current: 480A
Battery: 2-3S lithium battery / 4-9s -hydrogen - battery
BEC Output: 5.8V / 3A
Power Plug: T plug male
Motor Plug: 4 mm banana plug
Size: Approx. 43 x 31 x 32mm / 1.7 x 1.2 x 1.3in
120A ESC:
Continuous Current: 120A
Burst Current: 600A / 10SEC
Battery: 2-3 seconds lithium battery / 4-9 seconds metal hydride battery
BEC Output: 5.3V / 5A (switch mode)
Power Plug: T male
Motor Plug: 4mm banana plug female
Size: Approx. 43 x 31 x 32mm / 1.7 x 1.2 x 1.3in
Package List:
1 x ESC
1 x Manual
