- Attenuation ratio: 1× and 10× optional.
- Portable design according with ergonomics.
- Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
- Safety standards: it has passed the CE Attestation of European Community.
- Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Performance & Characteristics
● Attenuation ratio: 1× and 10× optional.
● Portable design according with ergonomics.
● Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
● Safety standards: it has passed the CE Attestation of European Community.
Application Fields
● Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
● Measurement in intermediate and low frequency signals.
Order Information

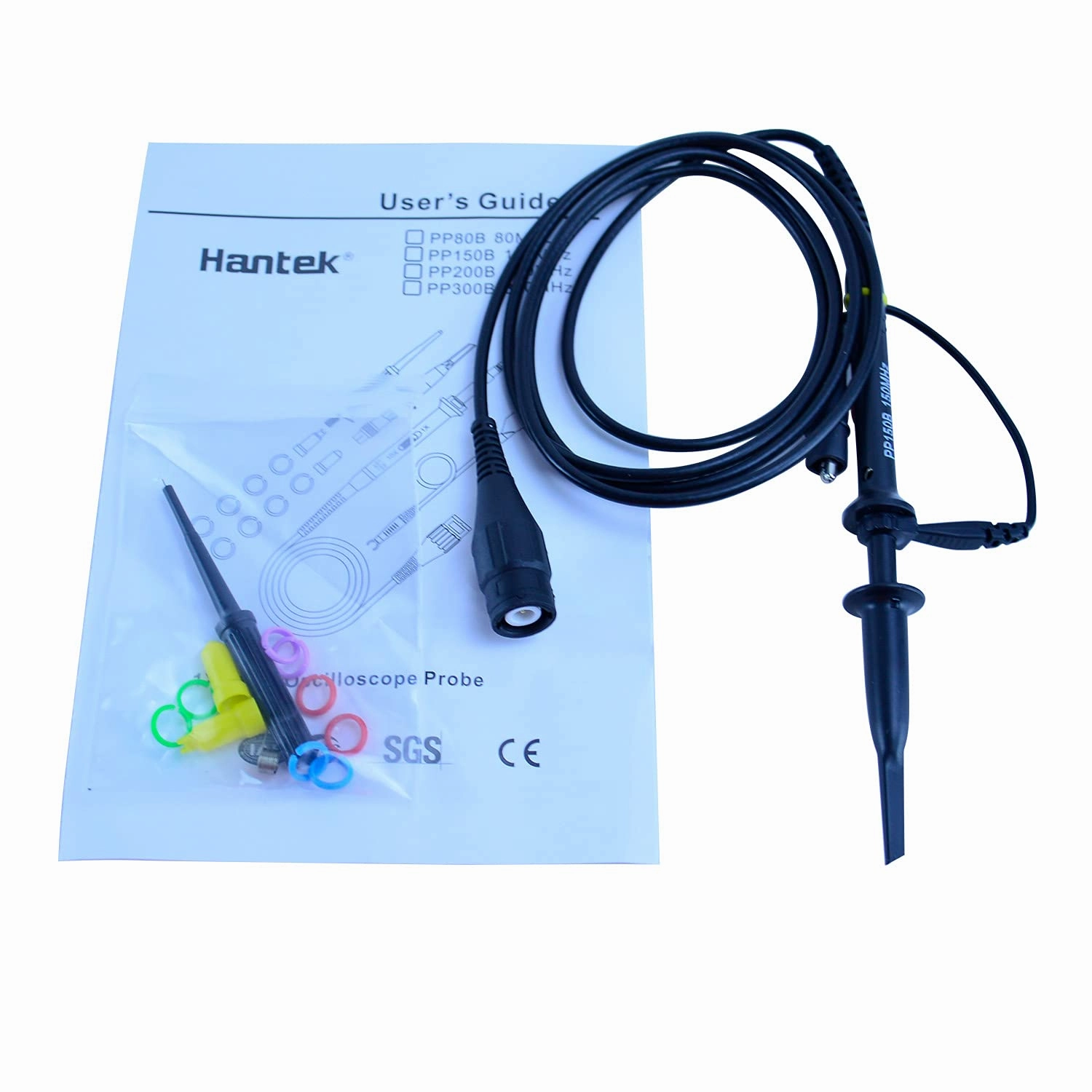

Accessories included by PP series passive voltage rapier
● Operation manual
● Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.

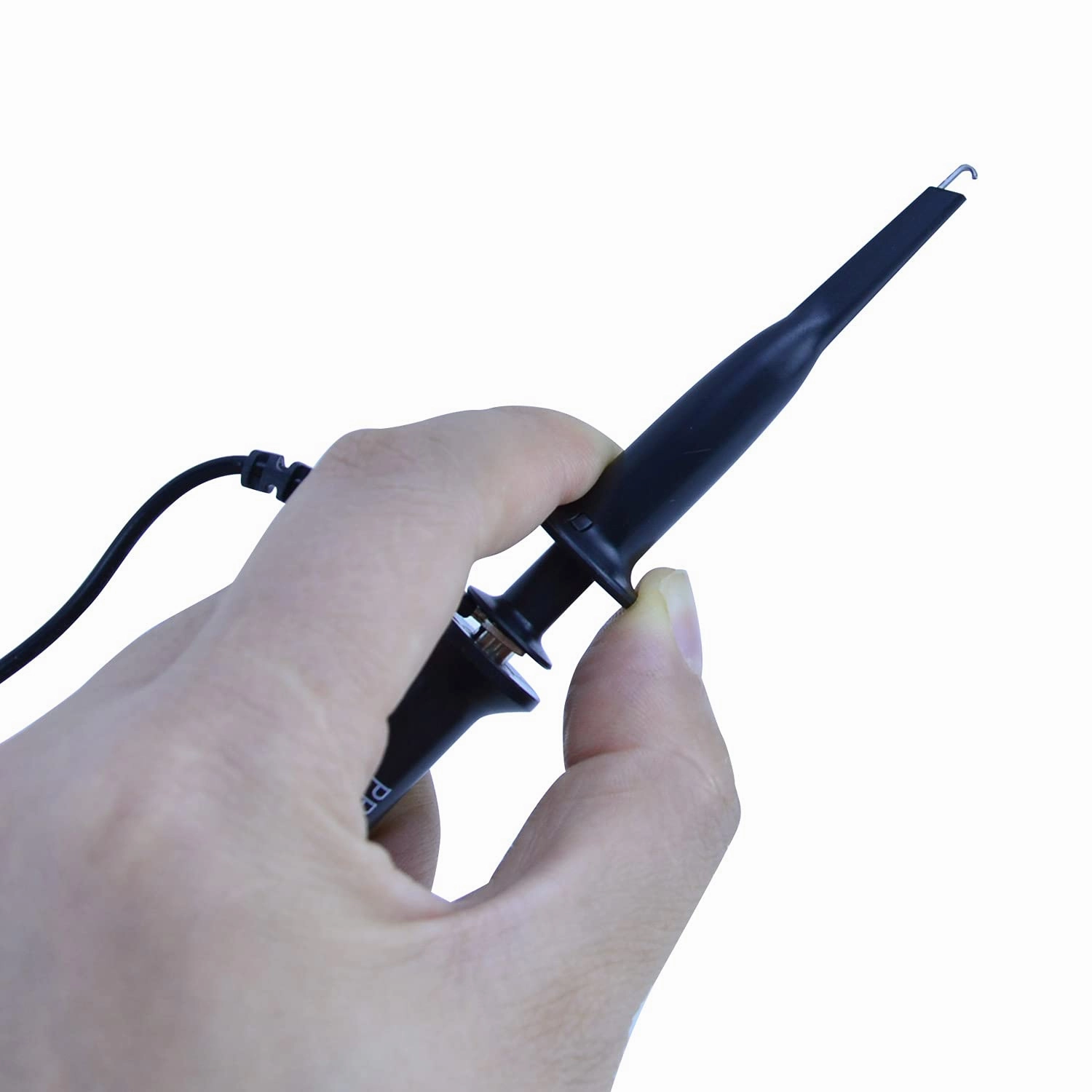

● Contractive-type acuminate hook
● 12cm earth wire with alligator clip
● 4 pairs of colorized cable markers
● Locating sleeve adapts to IC testing.

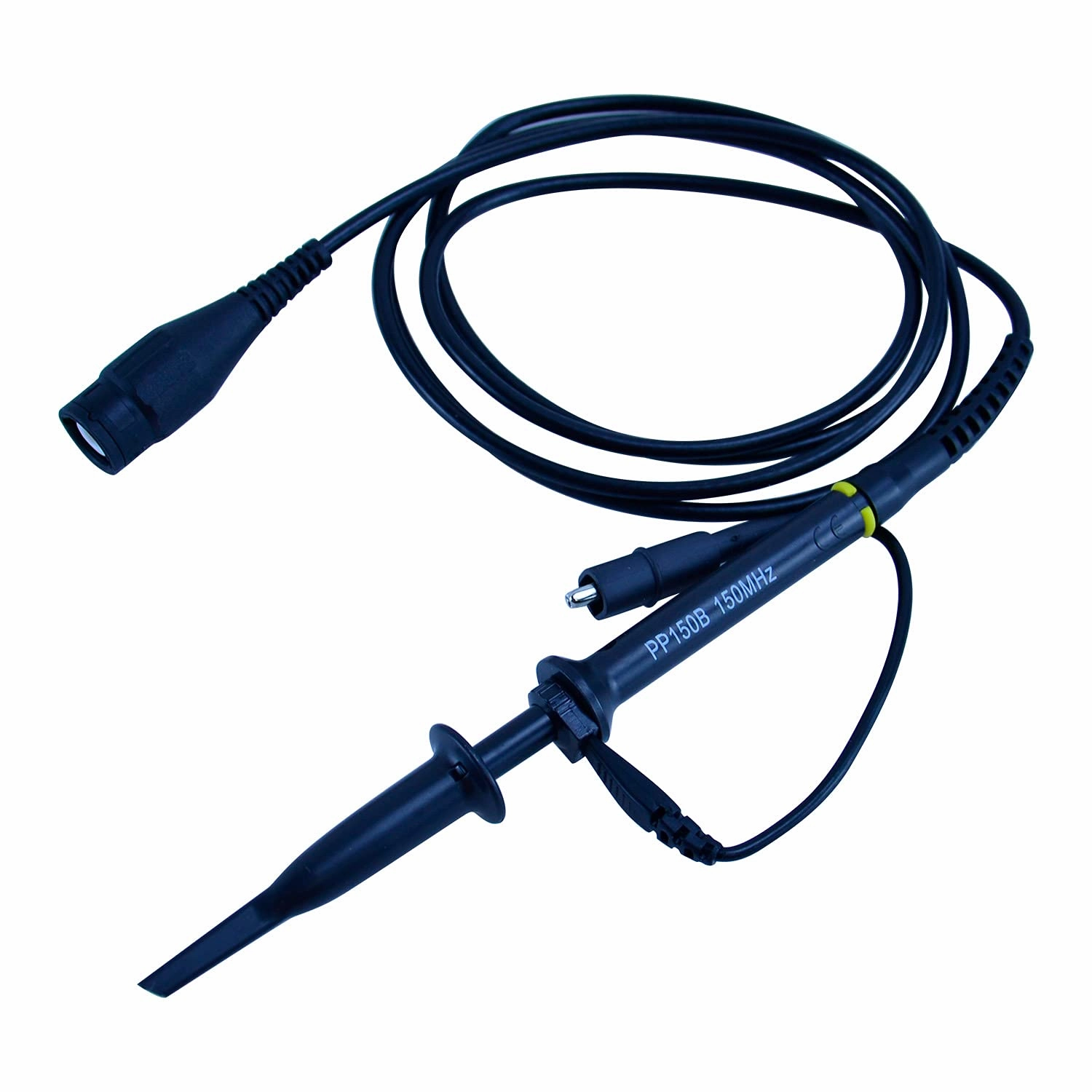

Item:PP-150B
Attenuation:x1 x10
Input resistance:1MΩ: 10MΩ
Input capacitance:
x1: 85pF-115pF
x10: 18.5pF-22.5pF
Compensation scope:15pF-35pF
System bandwidth:
x1: DC-6MHz
x10: DC-100MHz
Input voltage:
x1:<200V DC Peak AC
x10: <600V DC Peak AC
Weight:55g
Cable length:120cm
Temperature scope:
Operation: -10℃-- 50℃
Not Operation: -20℃-- 75℃
Humidity:≤85% (Relative humidity)
- Is Discontinued By Manufacturer : No
- Package Dimensions : 5.91 x 4.72 x 0.79 inches; 2.57 ounces
- Date First Available : March 4, 2022
- Manufacturer : Hantek
