- A digital portable receiver with comprehensive radio frequency coverage including AM, FM, longwave, shortwave, and single side band
- Adopts modern DSP digital demodulation technology as well as synchronized detection for enhanced and unparalleled reception sensitivity, selectivity, and anti-image interference capability across the bands
- A premium full-range 16 ohms / 500 mW speaker delivers loud, rich, crispy, dynamic and distortion-free sound for utmost entertainment experience, a 3.5 mm stereo earphone jack for private listening (stereo earphones included)
- Other convenient features include an alarm clock; a sleep timer of up to 120 minutes; external antenna input; 3.5mm audio output; 850 memories for easy access to frequently listened stations; keylock function for preserving settings
- Powered by one single 3.7V / 1,000 mAh Li-ion rechargeable battery with built-in charger, battery and micro-USB charging cable are included

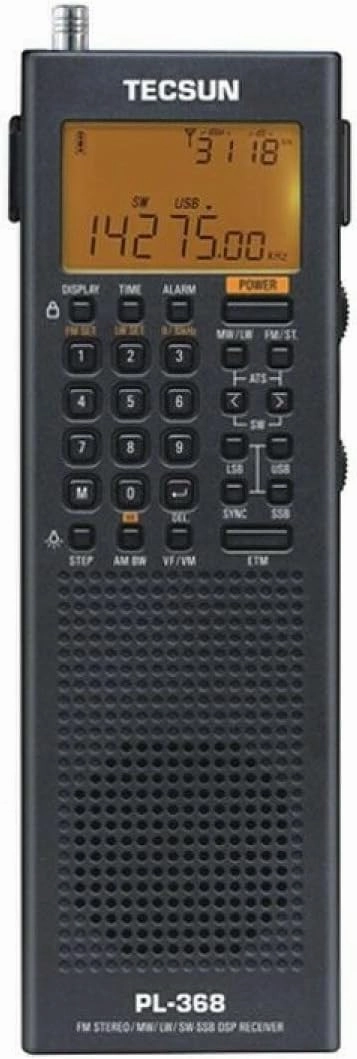

TECSUN PL368 is a portable PLL DSP multiband receiver with SSB and Synchronous Detection. It introduces Tecsun's new ETM feature which gives the possibility of setting up time-specific memories for longwave, medium wave (AM) and shortwave.
Its compact size is ideal for travelling. Let the radio wake you up in the morning by setting the alarm, or set the sleep timer to auto turn-off the device while listening before going to sleep. Charge the battery by connecting the radio to a 5V USB charger, one similar to those used for most smartphones and tablets.
SPECIFICATIONS:
Frequency Range:
-FM: 64.0 – 108 MHz (4 ranges selectable)
-AM: 520 – 1710 kHz (Tuning step 9/10 KHz selectable)
-LW: 153 KHz to 513 KHz
-SW: 1711 HHz to 29999 KHz
Tuning Methods:
-Direct keypad entry
-Auto scan
-Manual dial tuning
Sensitivity:
-FM (S / N = 30dB) <3uV
-AM (S / N = 26dB) <1mV/m
-LW (S / N = 26dB) <10mV/m
-SW (S / N = 26dB) <20uV
Selectivity:
-FM> 60dB
-AM / LW> 60dB
-SW> 60dB
-SYNC lock range: /- 1kHz IF Frequency (DSP):
-AM: 45 KHz
-FM: 128KHz
Output Power: Approx. 350mW
Speaker (16Ω, 0.5W)
Power: BL-5C lithium (Li-ion) battery
Charging: DC 5V / 500mA
Package Included:
PL368 Radio
3.7V/1000mAh rechargeable battery
Carrying pouch
Stereo earphones
Micro USB charging cable
User manual in English
