- Fits PPA T46, PPA T45, PPA T45NET and PPA T27 transmitters
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability, Battery-saving sleep mode
- Low-battery indicator, Field tunable
- Includes: (1) PPA R37N Receiver, (1) BAT 001-2 AA Alkaline Batteries and (1) EAR 013 Single Mini Earbud

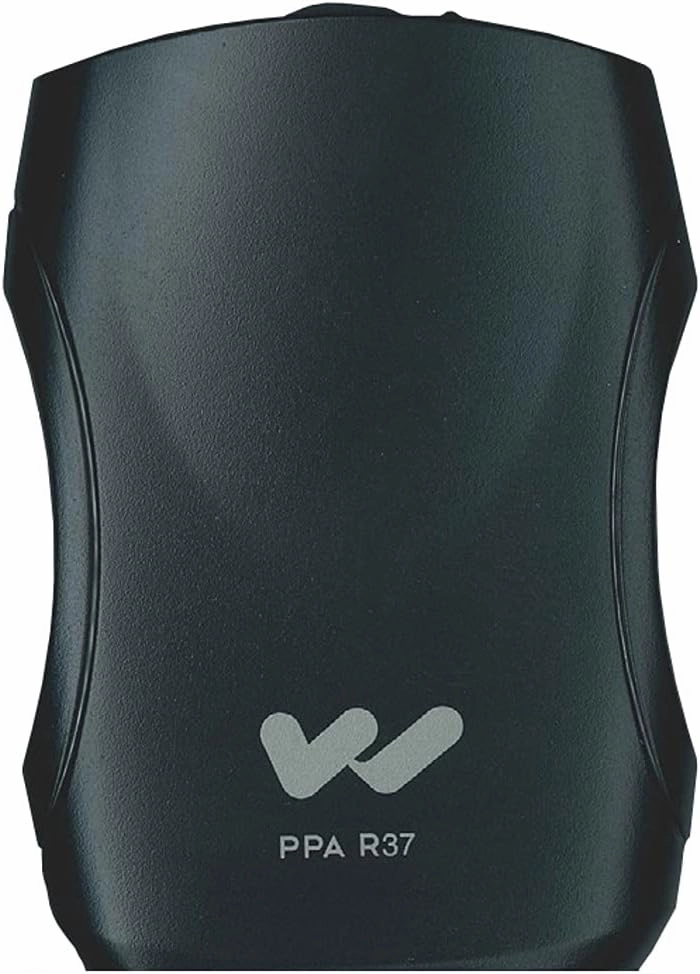

Williams Sound PPA R37 PPA Select FM Receiver, Black Fits PPA T46, PPA T45, PPA T45NET and PPA T27 transmitters, Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
Flexible and simple. The PPA Select FM receiver features easy-to-use, seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. Digitally synthesized for even greater audio clarity and stability. A versatile 3.5mm stereo/mono jack allows for a variety of earphone and headphone options, and is neckloop/telecoil-equipped-hearing-aid compatible
Key Features
- Fits PPA T46, PPA T45, PPA T45NET and PPA T27 transmitters
- Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
- Channel-lock capability
- Battery-saving sleep mode
- Low-battery indicator
- Field tunable
- Includes: (1) PPA R37N Receiver, (1) BAT 001-2 AA Alkaline Batteries and (1) EAR 013 Single Mini Earbud
Specifications
- Dimensions: 4.1"x2.85"x1.38"
- Weight: 4.6oz (130g) w/batteries. 2.6oz (73g) w/o batteries
- Battery Type: (2) AA Alkaline or 2 x AA NiMH
- Current Consumption: 52mA nominal
- Temperature Range: –0 to 50°C
- Channels: 17, accessed via seek button in battery compartment
- Intermediate Freq.: 75 kHz
- FM Deviation: 75 kHz
- De-Emphasis: 75 µS
- AFC Range: ± 120 kHz
- Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
- Input Overload: 100 mV
- Frequency Response: 200 – 15 kHz
- Modulation: FM, /- 75 kHz peak deviation
- Signal-to-Noise Ratio: 65 dB min @ 100 uV
- Receive Antenna: Integral with earphone/headphone cord
- Audio Output: 35 mW max, peak into 16 ohms
- Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
